SS #670 Dyno

SS #670 Dyno

I took SS #670 to Terry at the Dyno Room located in the Mustang Ranch in Santa Clara to get some baseline measurements of my car. He has a Dynojet 248C.

Corrected	Actual

308.8 HP / 321.6 ft-lbs	320.5 HP / 333.8 ft-lbs

These runs were made at 4955 miles with a stock engine, intake and SLP dual-dual SS exhaust. I ran with Mobil 1 5W-30 synthetic oil and on Union 76 92 octane fuel.

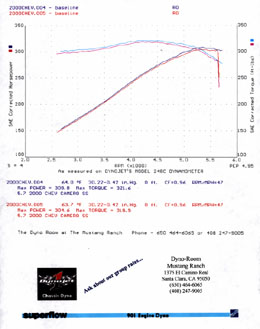

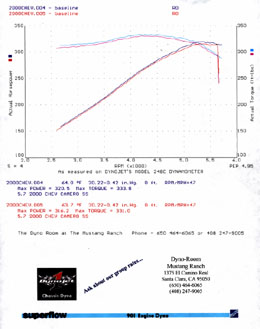

The graphs show my final two runs which were made after we started using a fan to push air past the radiator. I captured the water temperature numbers with Autotap; the 25° F increase in temperature appears to equate to loss of 4 HP between my two best pulls.

Here are the stats for the two pulls:

Run 4 Run 5

308.8 HP
304.6 HP Corrected power

320.5 HP 316.2 HP Actual power

321.6 ft-lbs 318.9 ft-lbs Corrected torque

333.8 ft-lbs 331.0 ft-lbs Actual torque

194° F 221° F Initial water temp

205° F 230° F Final water temp

64.0° F 63.7° F Ambient temp

30.22 in-HG 30.22 in-HG Barometric pressure

0.42 in-HG 0.42 in-HG Vapor pressure

0.96 0.96 Correction factor

Run 4	Run 5
308.8 HP	304.6 HP	Corrected power
320.5 HP	316.2 HP	Actual power
321.6 ft-lbs	318.9 ft-lbs	Corrected torque
333.8 ft-lbs	331.0 ft-lbs	Actual torque
194° F	221° F	Initial water temp
205° F	230° F	Final water temp
64.0° F	63.7° F	Ambient temp
30.22 in-HG	30.22 in-HG	Barometric pressure
0.42 in-HG	0.42 in-HG	Vapor pressure
0.96	0.96	Correction factor

Here's a zip file containing the Dynojet data files: dyno-15Feb2000.zip
You can display them using the Dynojet run viewer.

Here's a zip file containing the Autotap data files: autotap-15Feb2000.zip
You can display them using the AutoTap log viewer.
